Floating floor shock absorber
FRF type rubber vibration isolation and sound insulation mat is a new type of floating rubber product successfully developed based on the dynamic characteristics of rubber with superior vibration reduction and sound insulation effects.
Related Products
Brochure
Product Description
Material: rubber
Purpose: shock and noise reduction
Specifications: Customized on demand
Temperature resistance: -20C~120°C
Scope of application: used in industrial and mining enterprises, transportation departments
| Model | Length(mm) | Width(mm) | Thickness(mm) |

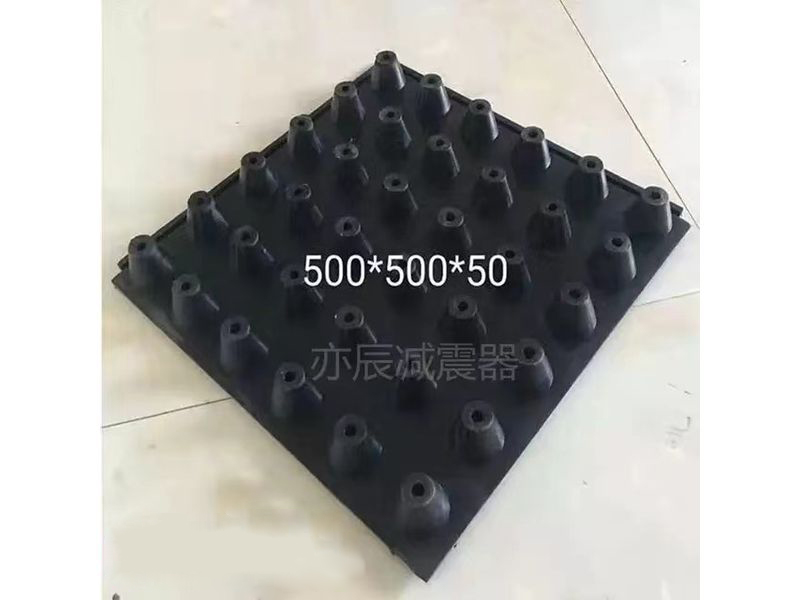

| 500*500*50mm | 500 | 500 | 50 |
| 500*500*30mm | 500 | 500 | 30 |

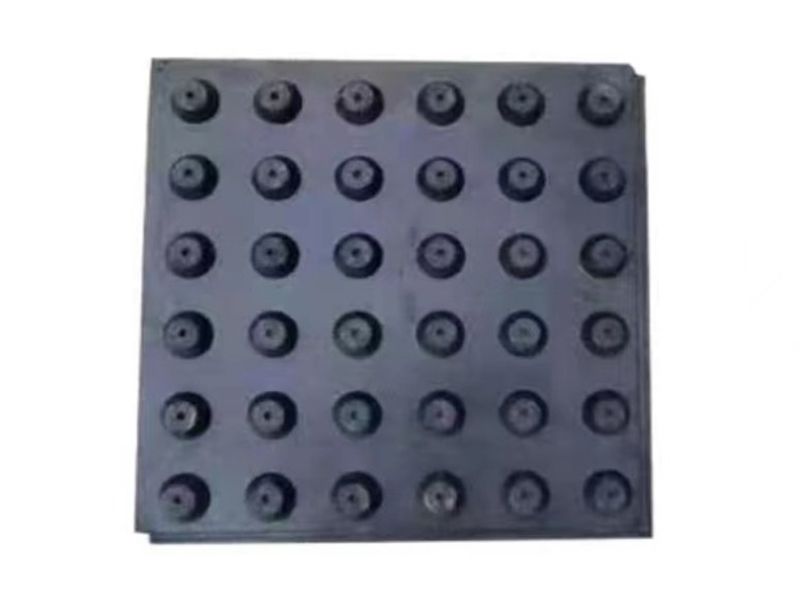

FRF type rubber vibration isolation and sound insulation mat is a new type of floating rubber product successfully developed based on the dynamic characteristics of rubber with superior vibration reduction and sound insulation effects. The structure of this floating vibration isolation pad is novel. There is a flat plate with convex grid lines on the top as an anti-slip surface. The bottom is an inverted frustum cone arranged in a square arrangement at equal intervals, and a hole is recessed in the middle of each inverted cone to form a The semicircular cavity increases the elasticity of the air cushion under working conditions, making the structure more reasonable in stress and better in performance. The basic shape is a standard square 500*500mm flat plate with concave and convex wedge-shaped grooves around the edges.
Floating vibration isolation and sound insulation panels are formed by vulcanization of natural rubber. There are 1 to 2 layers of nylon skeleton sandwiched in the middle of the panel. They are integrated by hot melt during the vulcanization process, so they are high in strength and durable.
The characteristic of the floating vibration isolation pad is that it is extremely convenient to install and construct, and can be combined with any shape of cross wedge. Before assembly, apply a layer of adhesive on each of the wedge-shaped concave and convex grooves, and then splice them into an overall floating vibration isolation and sound insulation board plane of any size and shape, and it has the characteristics of no leakage (especially cement mortar).
Product Structure
unique design
The middle of each inverted cone is hollowed out to form a semicircular cavity, which increases flexibility during operation.
