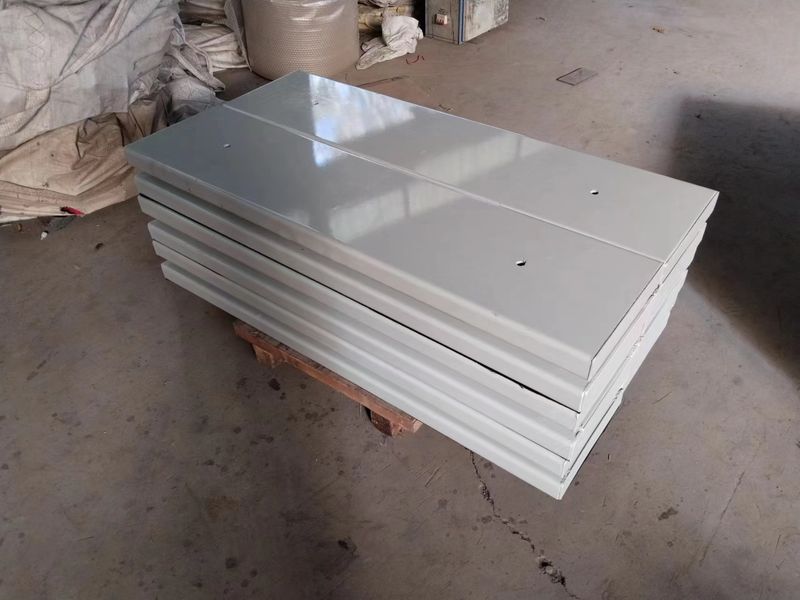

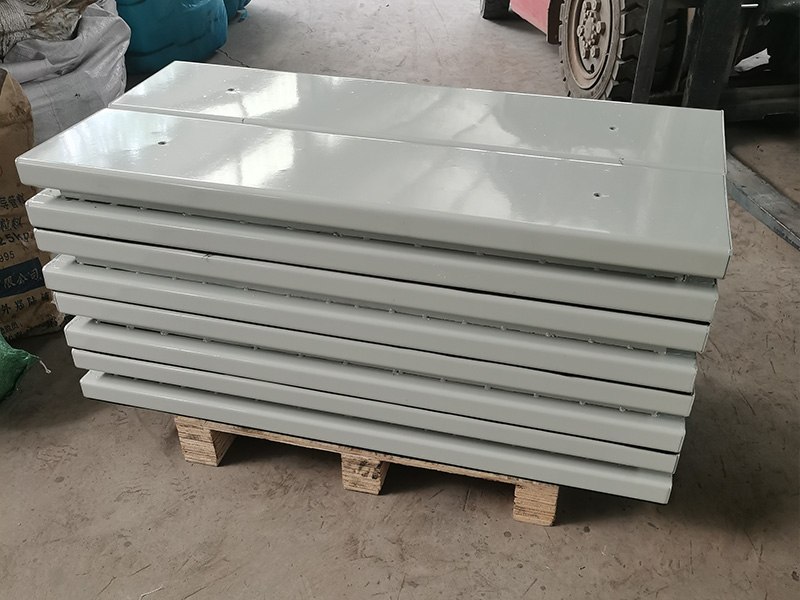

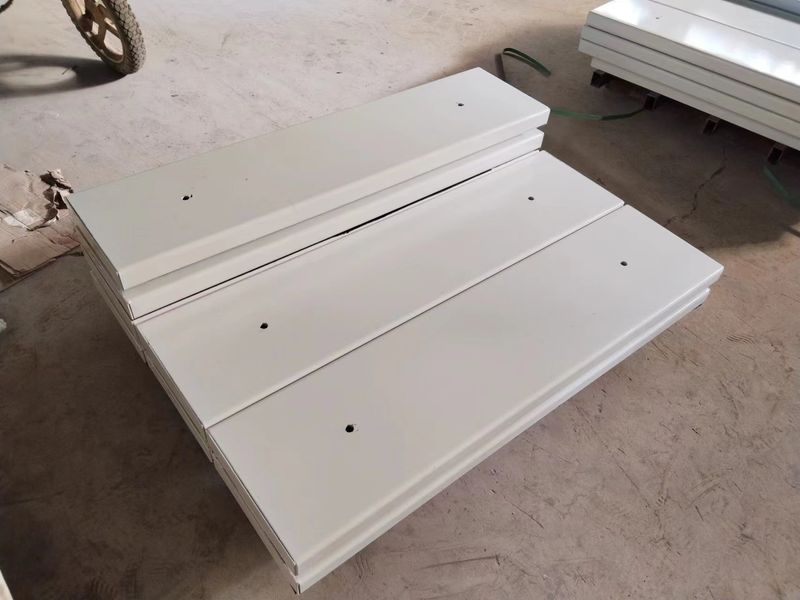

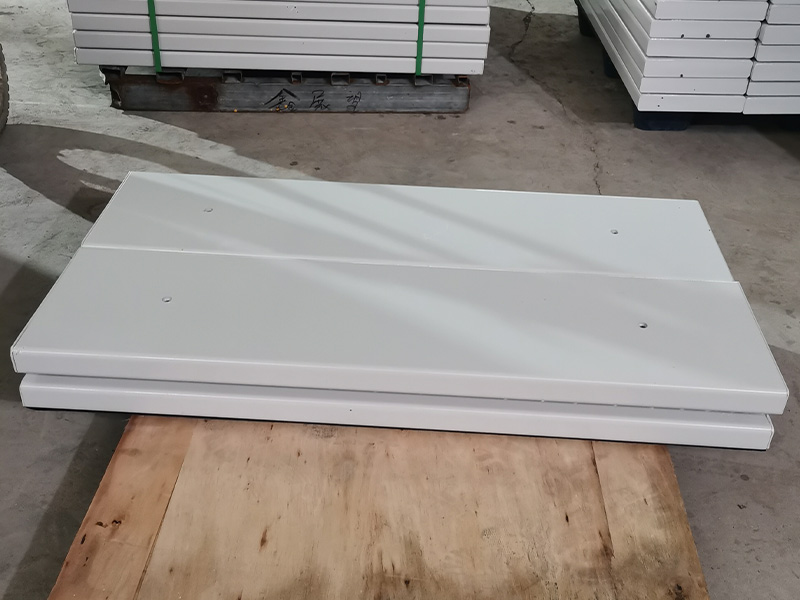

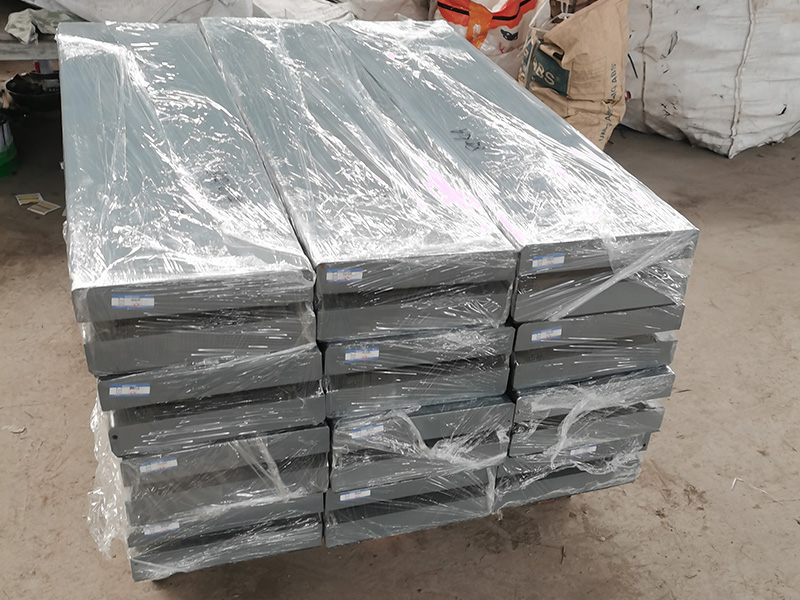

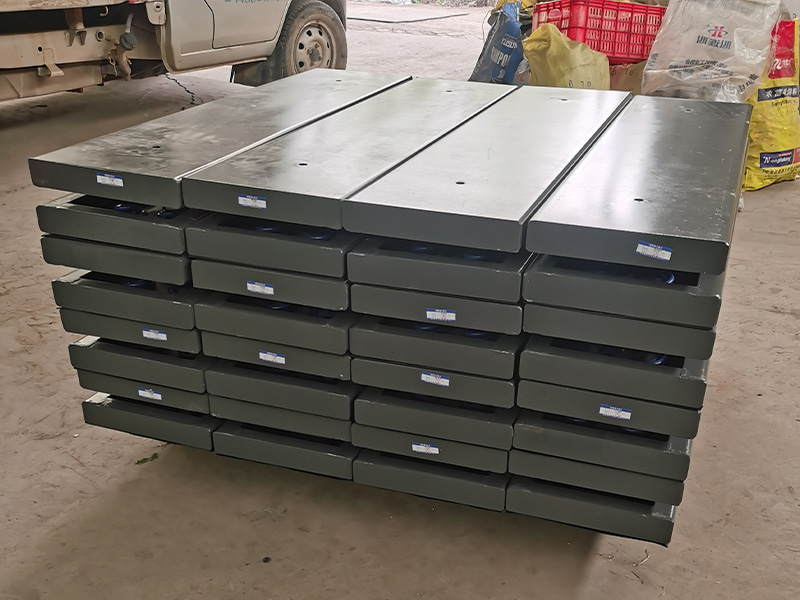

Matrix transformer shock absorber
Matrix shock absorber, special shock absorber for transformer.
Related Products
Brochure
Product Description
Matrix shock absorber, special shock absorber for transformer. The matrix shock absorber uses an anti-shock device inside, which is maintenance-free, has high safety performance, good fatigue resistance, easy installation, and saves time.
Matrix shock absorber product features:
1. The bullet surface adopts ED/electrostatic spray paint anti-rust treatment, which has excellent anti-rust ability.
2. The springs have been heat treated and stress relieved, and have good fatigue resistance. They are specially used for residential transformers and industrial transformers.
3. The diameter of the spring is greater than 0.8 times of the rated disturbance height when the spring is pressed down to MAX, and the pressing amount is greater than 50% of the rated disturbance when the spring is compressed MAX
4. Internal use of earthquake anti-shock devices, high safety performance
5. The internally designed damping mechanism effectively avoids resonance phenomena.
6. All specifications are sealed with impact-resistant and corrosion-resistant materials.
7. The springs are arranged in a Hermitian matrix. After loading, the springs are in a comfortable working condition to improve vibration reduction efficiency and service life.
Different sizes, dedicated to different transformers, easy installation to provide high-quality silent space. In the renovation and renovation of new transformer rooms, factories and residential areas, it can reduce noise and vibration, and is easy to install and maintain. It is an ideal component of the transformer.
The noise of the transformer mainly comes from low frequency, which is due to the vibration caused by multiple components and electromagnetism during the operation of the equipment. Currently, the noise standard of the transformer is required not to exceed 60dB, so this standard must be met during the noise control process of the transformer. When the noise of the transformer is higher than 60dB, a high-performance shock absorber needs to be installed at the bottom of the transformer. The low-frequency matrix shock absorber can reduce the downward vibration of the transformer vibration. Then replace the connections between the transformer and nearby buildings, ground, etc. Use soft connection to achieve noise reduction effect!
Applicable equipment: Matrix shock absorbers are mainly used for shock absorption of dry-type transformers and are special shock absorbers for transformers.
Load range: 600-8000kg
Support customization of special-shaped sizes and large loads
| Reference transformer model |
Load range (Kg/piece) |
Long (mm) |
Width (mm) |
High ±10% (mm) |
vertical stiffness (kg/mm) |
Material |
| 315KVA | 720-880 | 900 | 300 | 150 | 32 | Metal shell and spring set |
| 400KVA | 1100-1280 | 900 | 300 | 150 | 48 | |
| 500KVA | 1100-1280 | 1200 | 300 | 150 | 48 | |
| 630KVA | 1280-1680 | 1200 | 300 | 150 | 64 | |
| 800KVA | 1800-2100 | 1200 | 300 | 150 | 80 | |
| 1000KVA | 2100-2350 | 1200 | 300 | 150 | 88 | |
| 1250KVA | 2200-2450 | 1200 | 300 | 150 | 98 | |
| 1600KVA | 2650-2950 | 1200 | 300 | 150 | 112 | |
| 2000KVA | 2800-3200 | 1500 | 300 | 150 | 128 | |
| 2500KVA | 3600-4200 | 1500 | 300 | 150 | 160 | |
| Note: Dimensions are measured manually and there may be errors. The actual size shall prevail. | ||||||

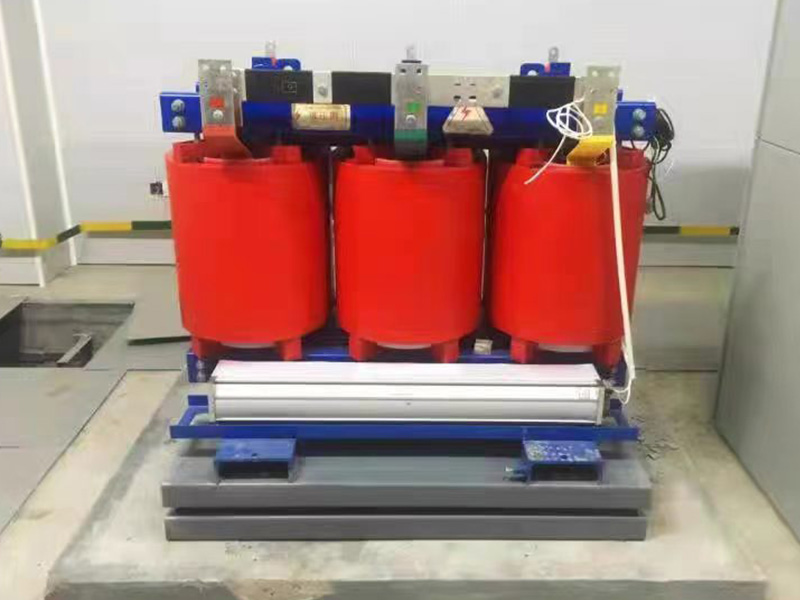

Installation diagram
